M3 e30 Gr-A
M3 e30 Gr-A
The E30 M3 was built for circuit racing first. Our circuit specification brings it back to that purpose, applying our motorsport experience to a closed-surface environment where aerodynamics, consistent braking performance, and suspension precision matter above all else.

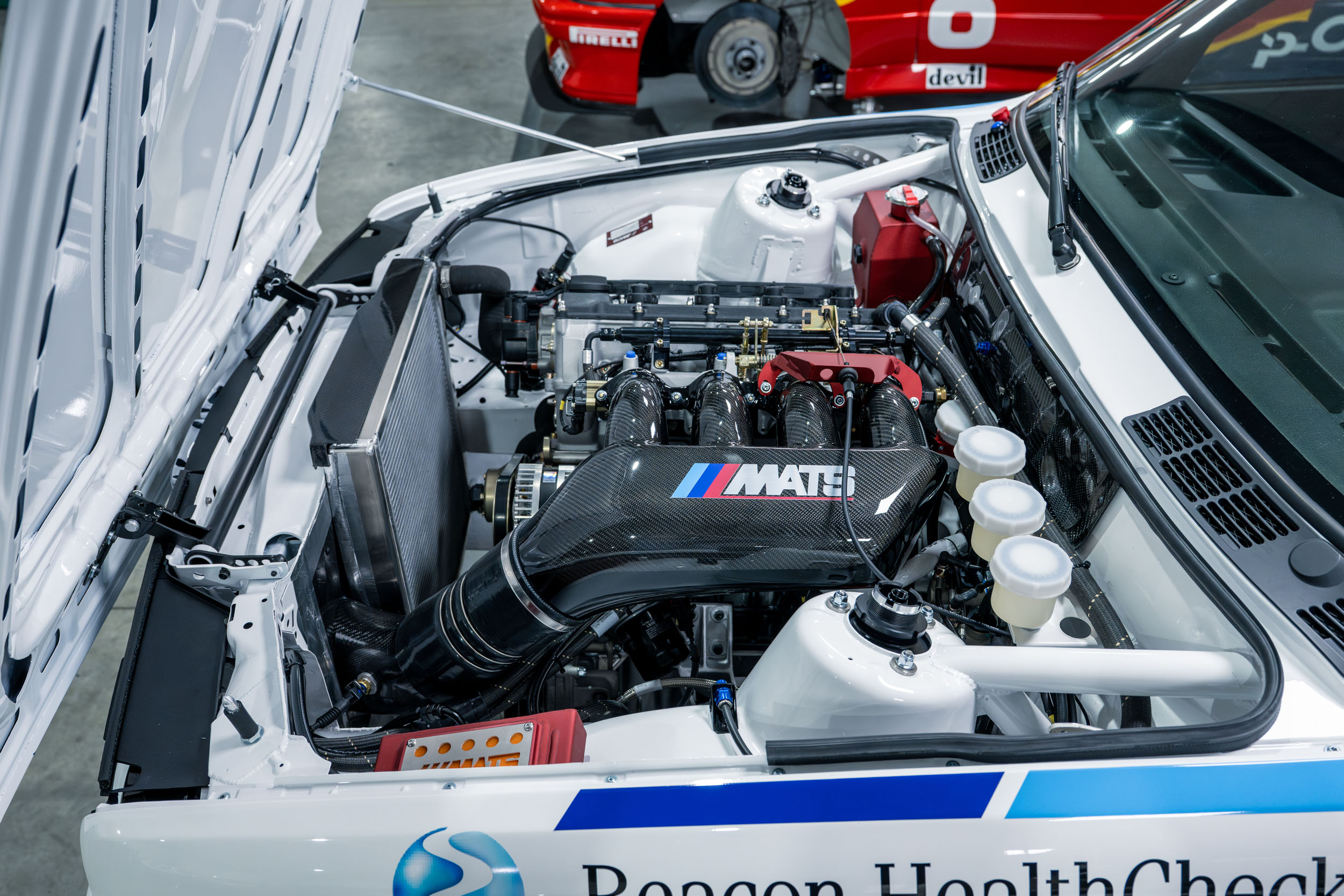

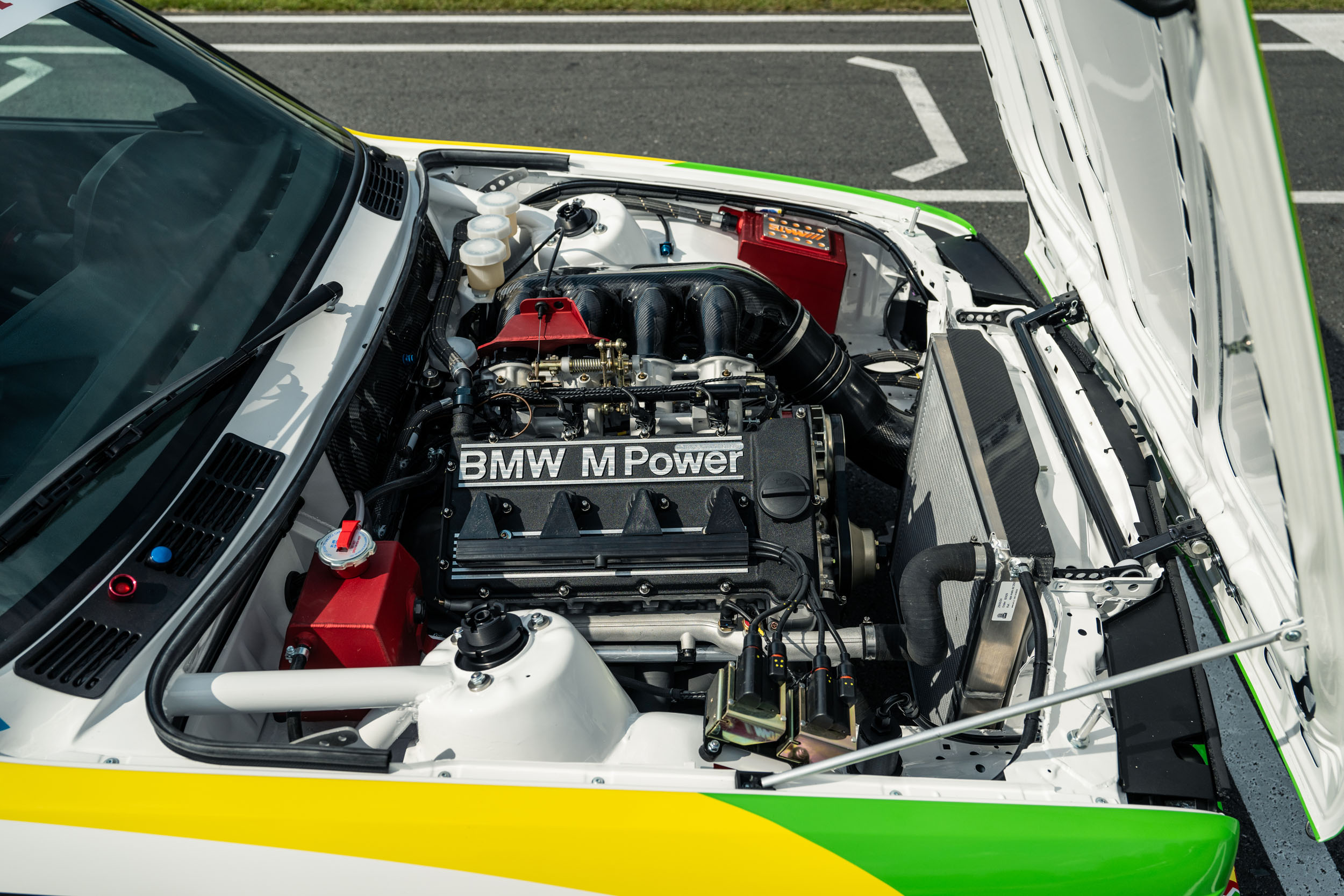

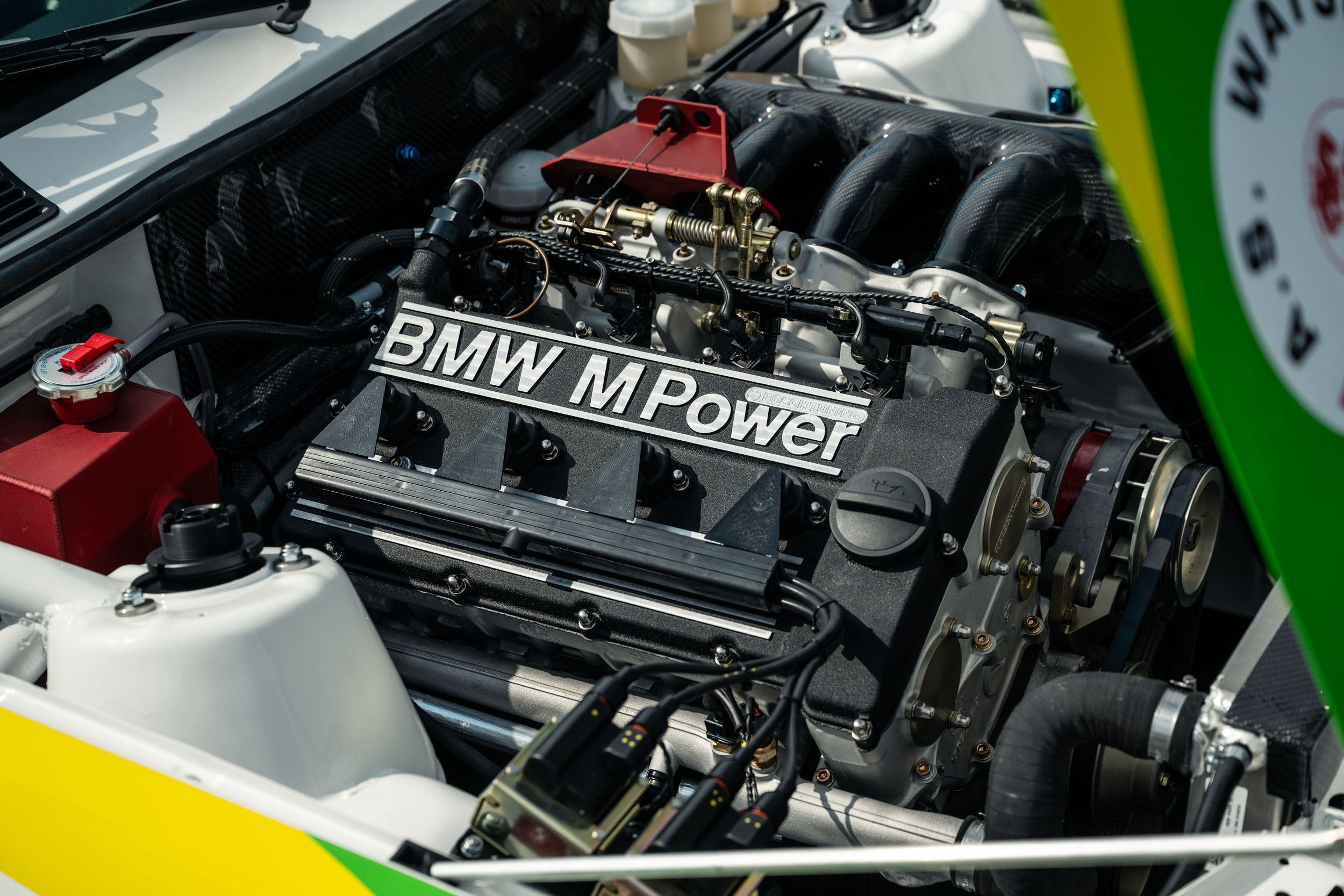

BMW S14B25
Topspeed
240km/h+
Torque
325 Nm
Clutch
5.1kg flywheel with 2plate AP 184mm clutch

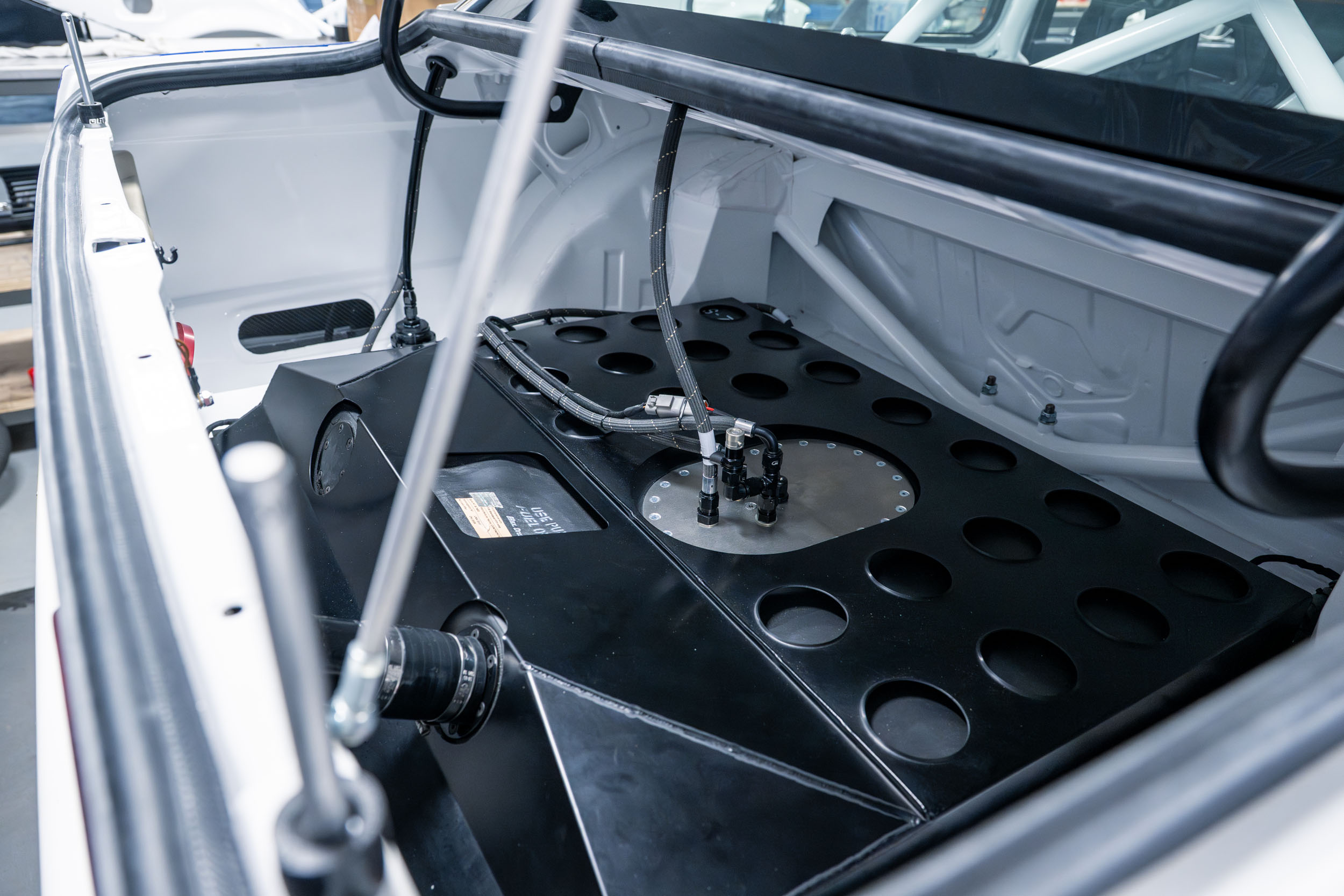

Fueltank
Merin 58L or Proflex 110L W/ INTERNAL CATCHTANK

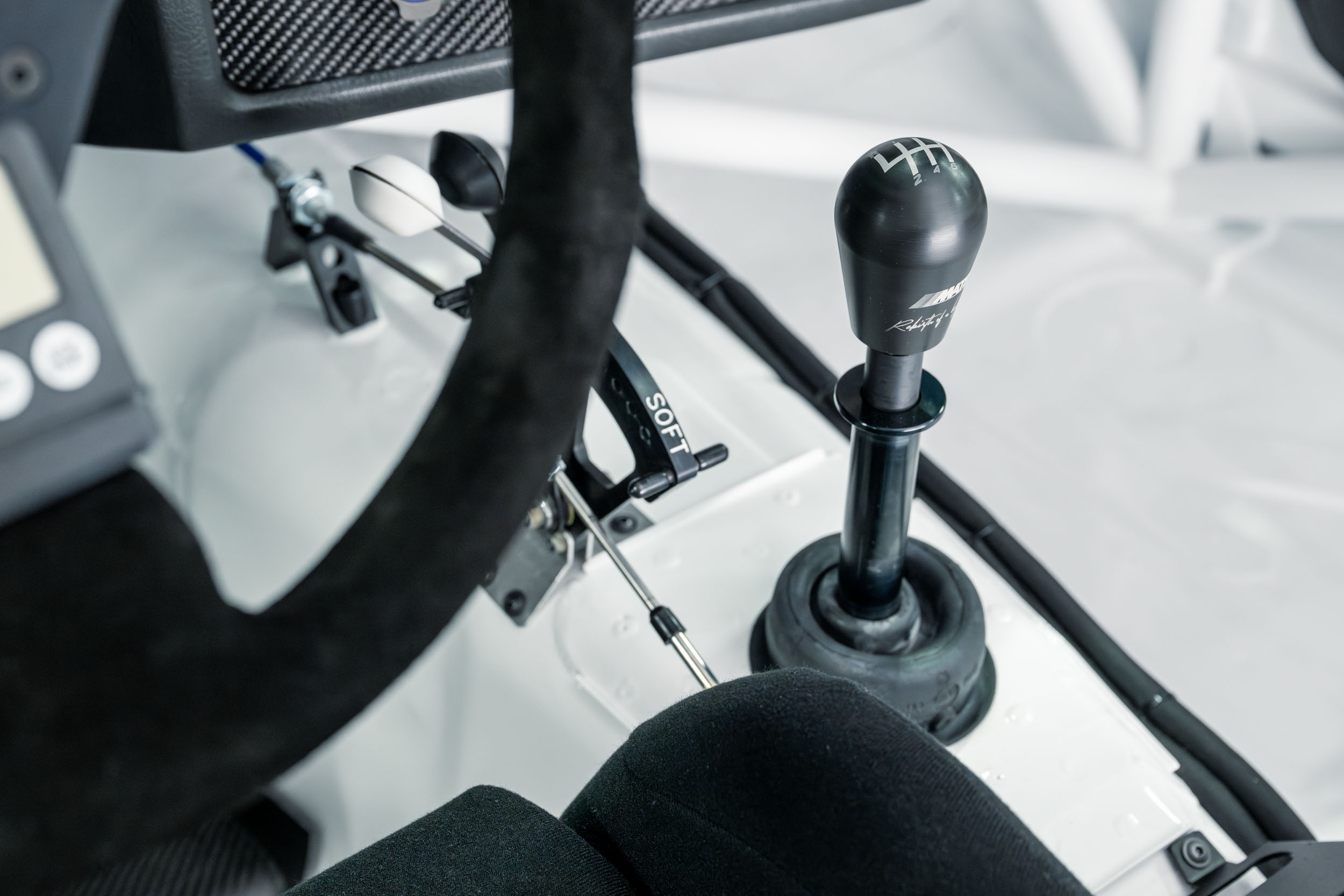

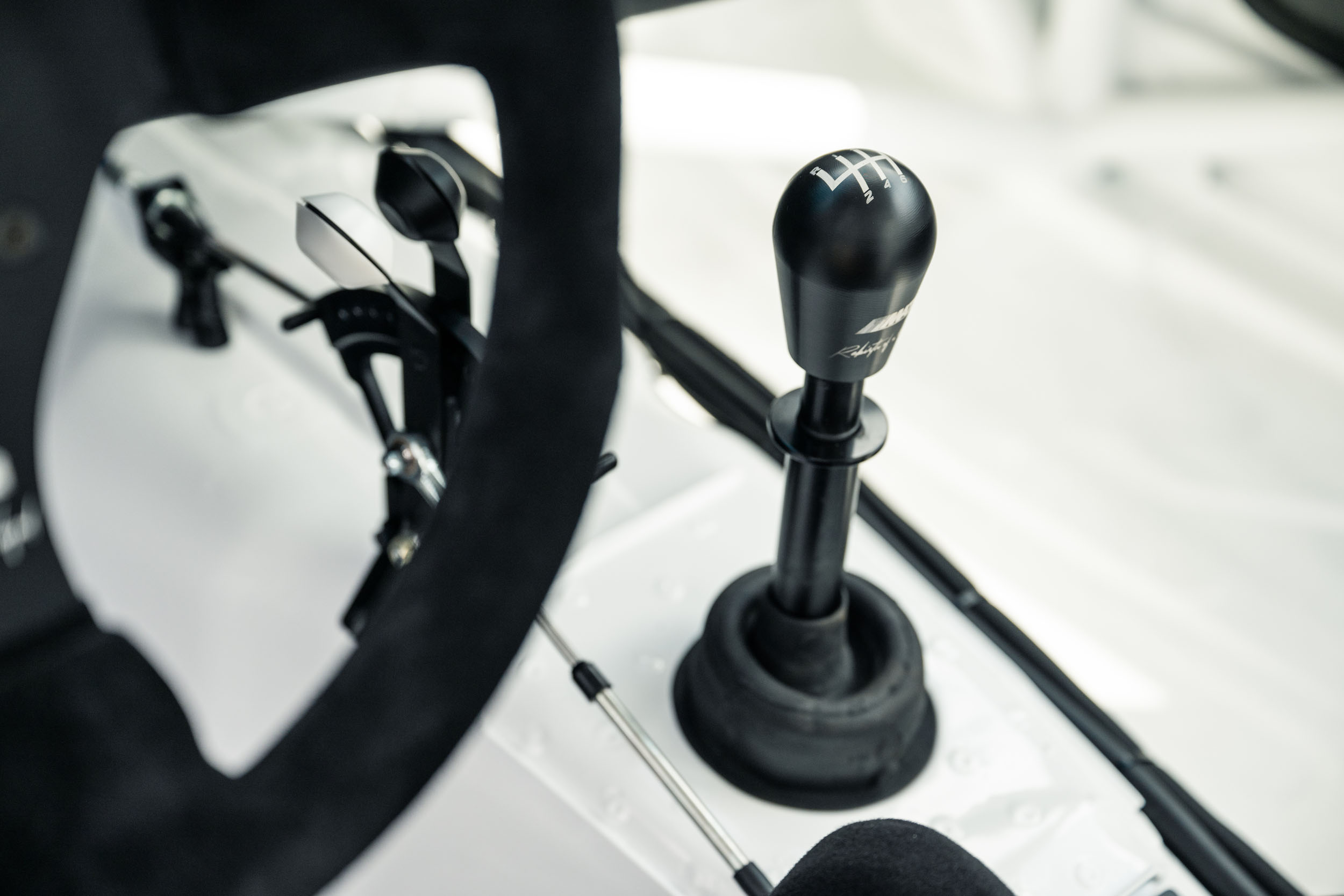

Gearbox
Drenth 6spd dogbox or Hollinger 6spd dogbox - homologated ratio’s
Exhaust
Gr-A manifold 50 mm in combination with a 76MM rear exhaust
Capacity
2467cc
Power
355 HP
Dampers
Moton or PKM suspension

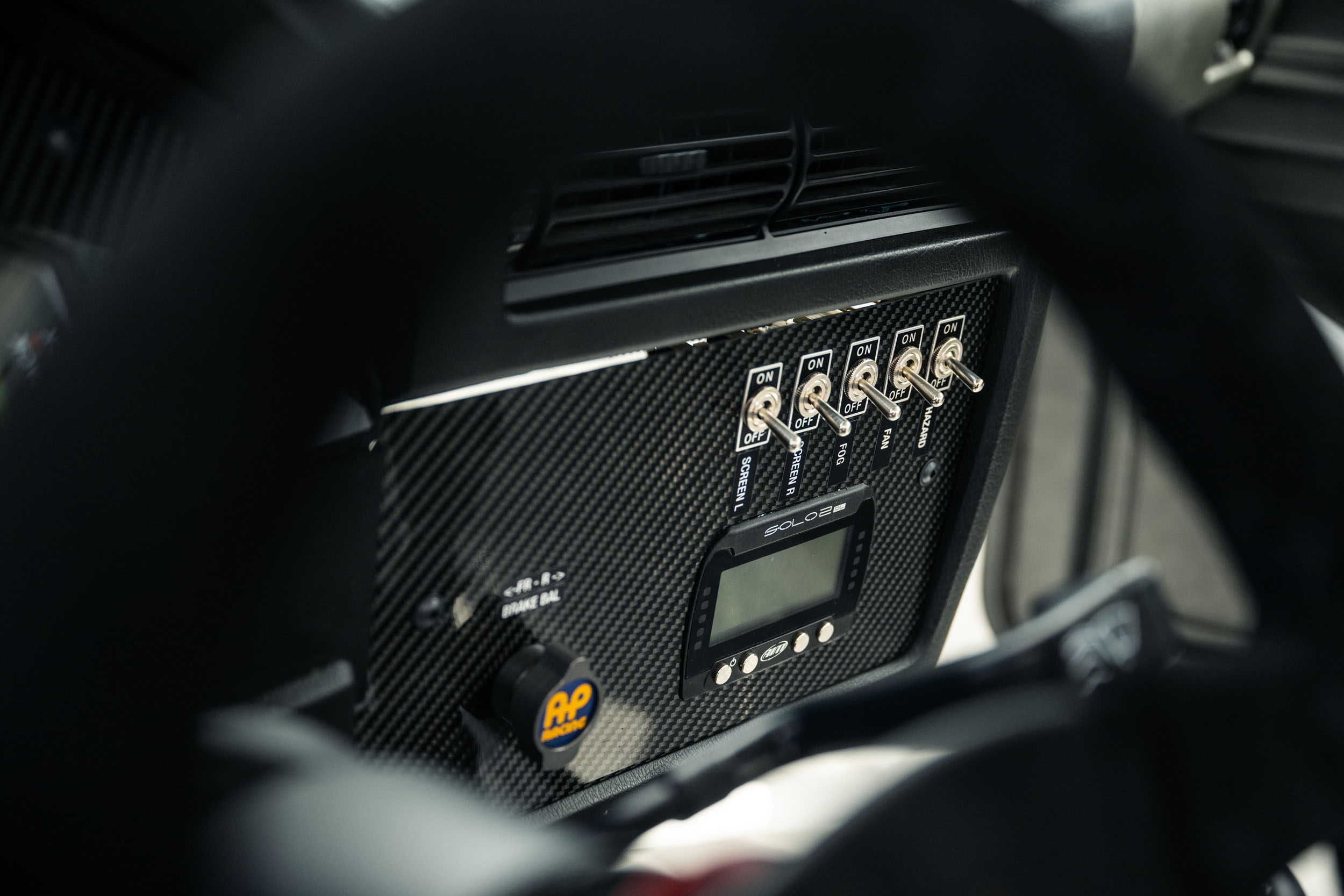

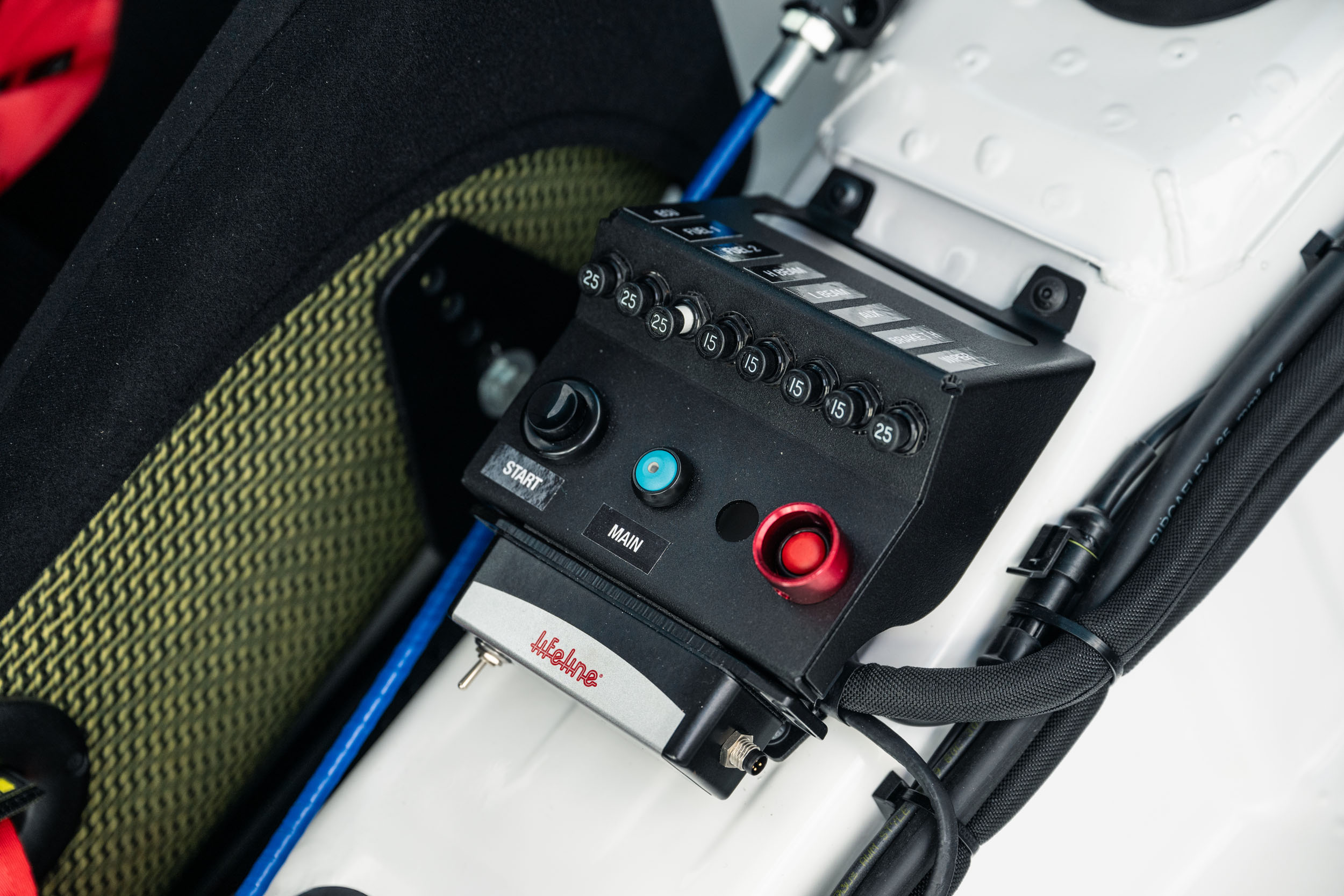

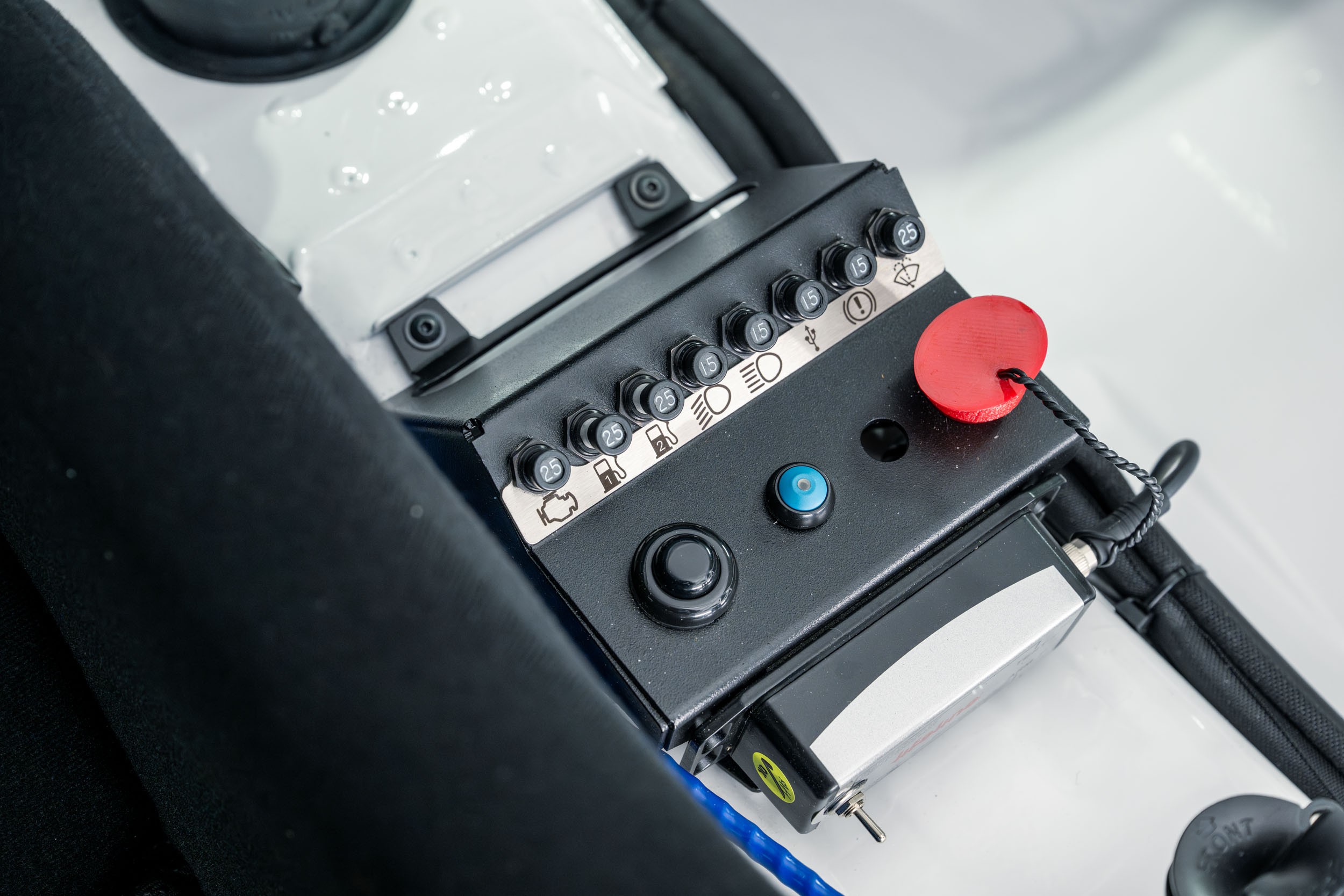

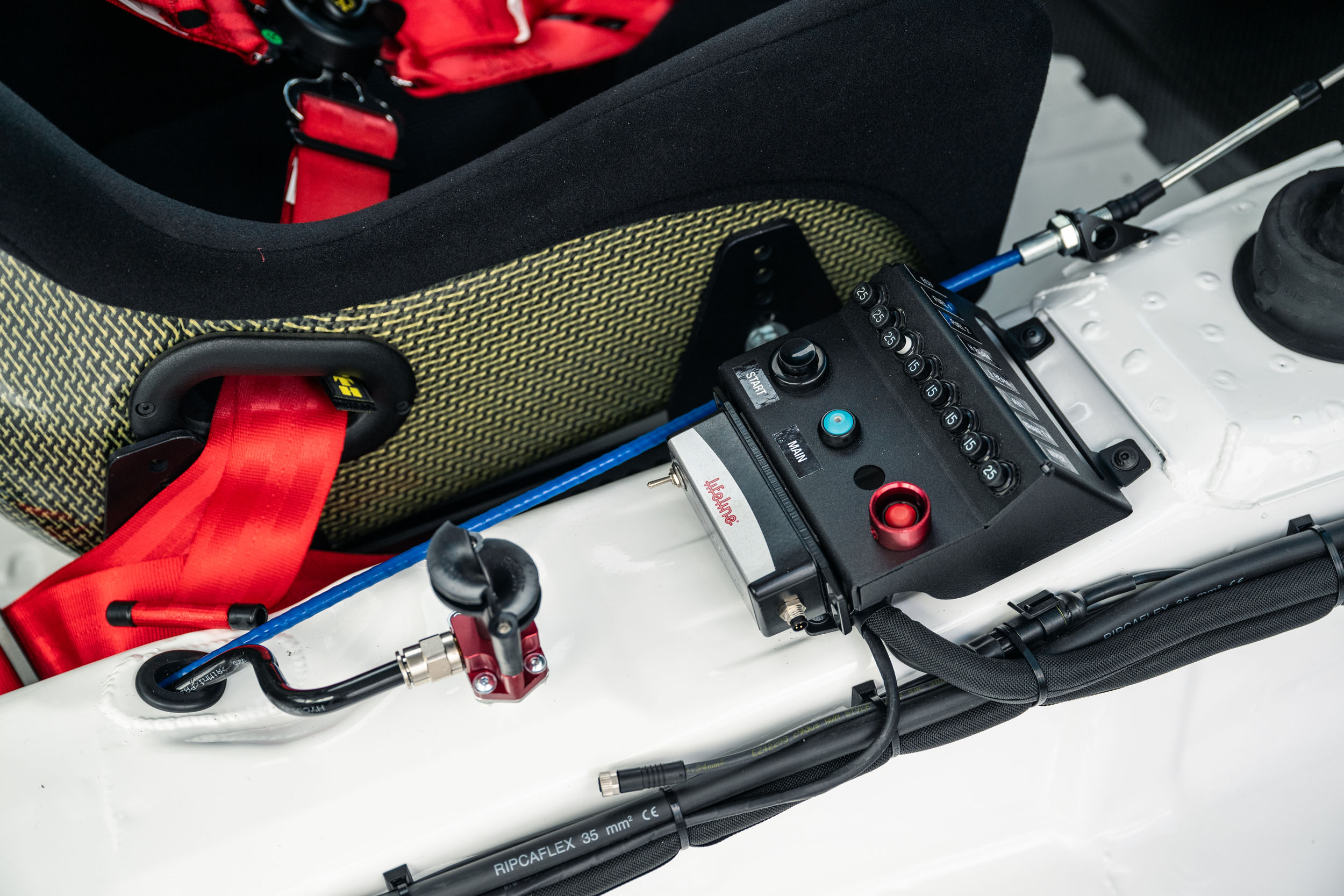

Electrics
Custom made - high spec.
Reardifferential
Custom Drenth LSD / different ramp angle’s - 4 or 6 plate

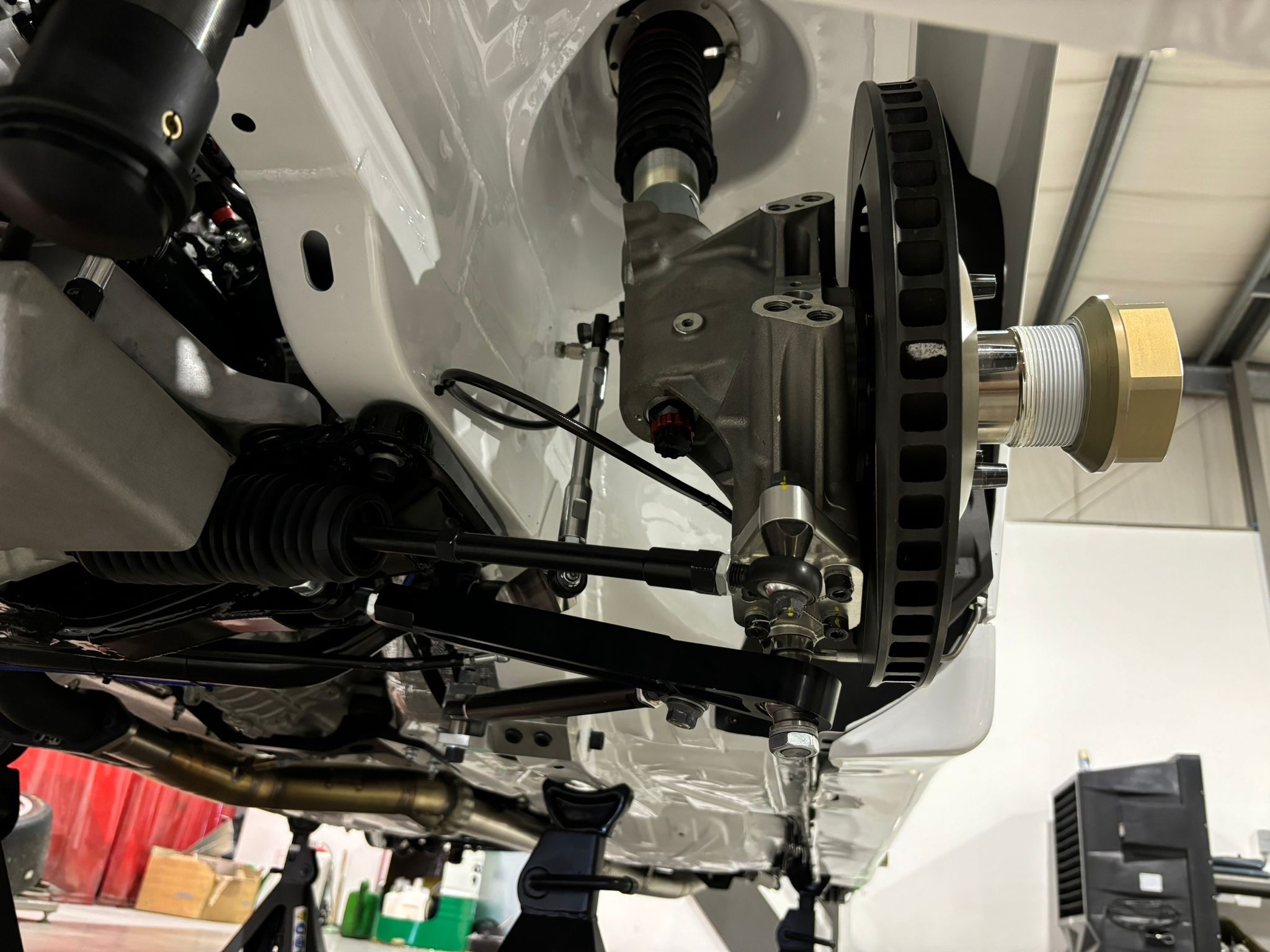

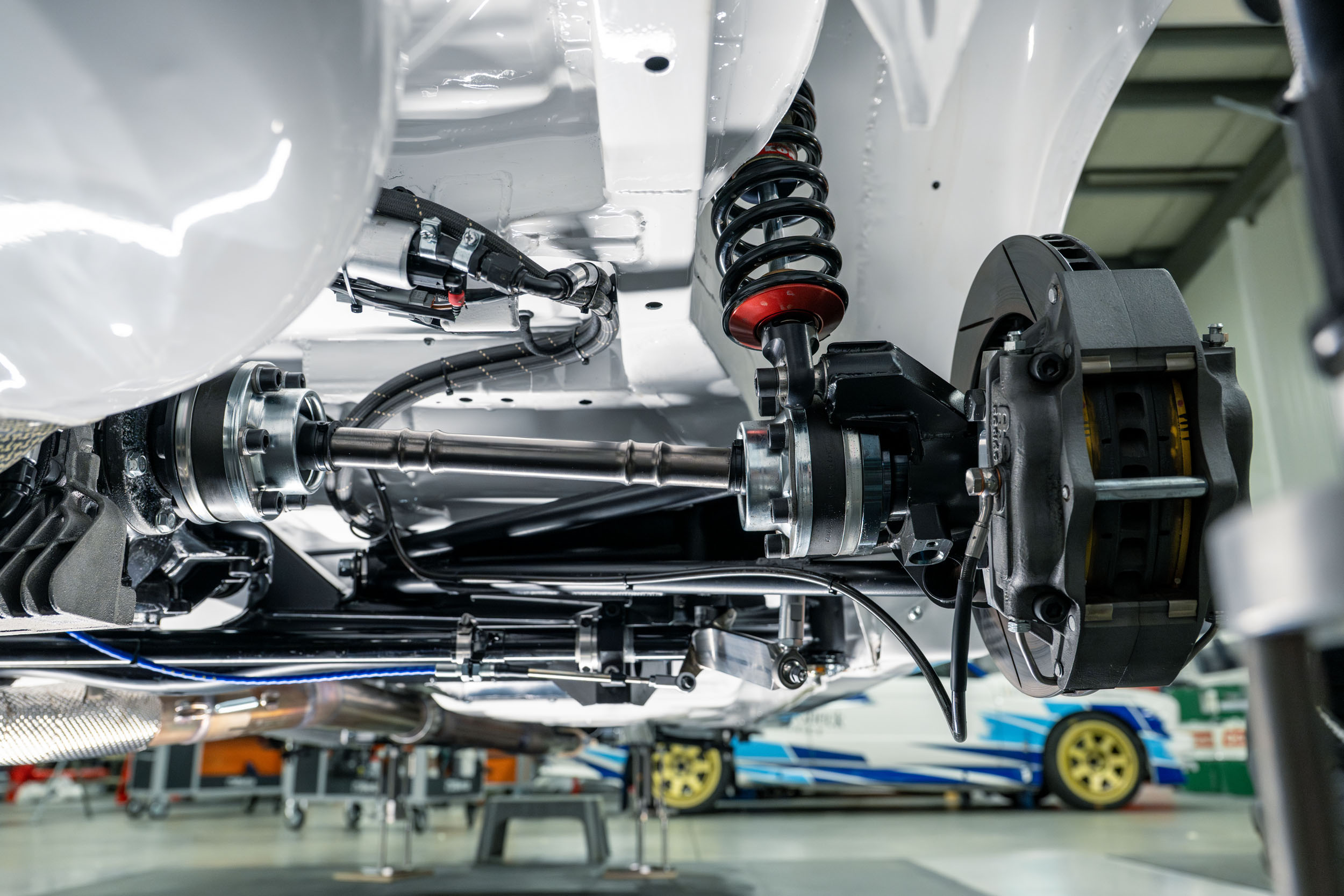

Uprights
Gr-A Aluminium uprights
Brakes
4 pot AP front - 356x32mm disc / 4 pot AP Rear 304x25mm disc
Let’s drive
[ M3 e30 GrA – Circuit ]
DTM-influenced geometry, multi-piston brake packages, and in-house developed components combine into a car that is properly prepared for historic circuit competition and set up to compete at the front.
